The JetStream-SDI is a multi-channel video AI carrier board for Jetson™ modules. The JetStream-SDI provides dual HD-SDI inputs and eight composite video inputs allowing multi-channel video AI applications to be rapidly developed and deployed. This SWaP optimized solution is ideal for demanding applications in Transportation, Military, Communications, Mining and Energy industries.

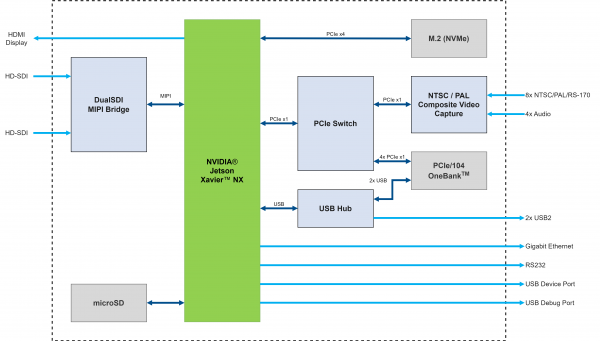

The JetStream-SDI features dual HD-SDI inputs at up to 1080p60 and an 8 channel NTSC/PAL/RS-170 low latency video capture engine. All inputs can be simultaneously captured for processing by the Jetson Xavier NX module allowing vision-enabled AI applications to use a wide range of standard video sources. The JetStream has a HDMI output for local display and Gigabit Ethernet for connectivity. An M.2 (Key M) slot is provided to allow connection of high-performance NVMe storage. Additional expansion is possible via the PCIe/104 OneBank™ bus connector.
The JetStream-SDI is a standard PCIe/104 form factor card and is powered from 9V-15V DC input. The JetStream-SDI is supported by a comprehensive board support package and a series of application notes designed to help rapid development of vision-enabled AI applications.
