DisplayPort to VGA scan converter

The nanoDP2VGA is a DisplayPort to VGA converter on a compact miniPCI-express form factor card. The nanoDP2VGA accepts a DisplayPort input and outputs analog VGA signals at up to 1920×1200 (WUXGA) resolution.

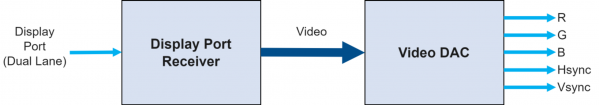

The nanoDP2VGA receives the DisplayPort digital signal and automatically converts it for display on a progressive analog VGA output. The video resolution and framerate are preserved across the conversion. A cable set is available for the nanoDP2VGA that provides panel mount DisplayPort and VGA connectors.

The nanoDP2VGA is an intelligent stand-alone device and does not require a host CPU or any driver software. For mechanical convenience the module is powered via the miniPCI-express connector.

Add to Quote Datasheet Manual

VGA minipcie scan converter video conversion Display Port

Highlights

Converts DisplayPort to standard analog VGA
DisplayPort 1.1a compliant input
VESA compatible analog VGA output
Supports resolutions up to 1920×1200 (WUXGA)
Single +3.3V power supply
Stand-alone operation
Operating system neutral
Very small footprint miniPCI-express form factor

Applications

Aerospace instrumentation
Instrument panel
Multi-function display (MFD)
Situational Awareness
Remote Video Surveillance
Naval/Marine instrumentation
Border Security
Traffic Monitoring and Control
Video Acquisition and Analytics

Supported Platforms Windows 7, Windows 8, Windows 10, Linux

Digital Video Input

VESA compliant DisplayPort v1.1a
1-lane and 2-lane modes supported
1 MHz AUX channel

Analog Video Output

Progressive scan RGB, H-Sync, V-Sync (Analog VGA)
Pixel clock up to 240Mhz
Triple 8bit digital-to-analog conversion
DDC

Supported Resolutions

Display resolutions between VGA and WUXGA, including:
SVGA 800×600
XGA 1024×768
HD 1280×720
SXGA 1280×1024
UXGA 1600×1200
WUXGA 1920×1200

Power

Single +3.3V power operation

Miscellaneous

Standard full height miniPCI-Express form factor
Operating temp 0˚C to 60˚C
Operating temp –40˚C to +85˚C (extended temp option)

Documentation

Order Enquiry for nanoDP2VGA

Product Codes

nanoDP2VGA-EXT - DisplayPort to VGA scan converter (-40˚C to +85˚C)
Cable-nanoDP2VGA - Cable set for nanoDP2VGA (1x DisplayPort FlatFlex input cable, 1x VGA output cable)
