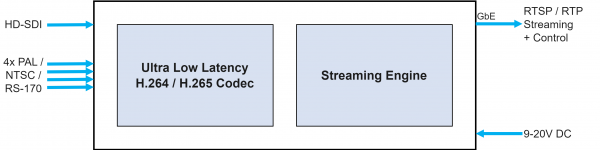

The nanoHydra-HD1SD4 is a multi-channel, Ultra Low Latency (ULL) IP video streaming appliance. The nanoHydra-HD1-SD4 captures 1x HD-SDI and 4x PAL/NTSC/RS-170 video channels, encodes and streams them over Ethernet. This rugged video appliance is ideal for rapid deployment in demanding applications in Military, Communications, Transportation and Energy industries.
The nanoHydra-HD1SD4 features a dedicated hardware H.264/H.265 compression engine capable of encoding multiple channels at full size and full frame rate. The flexible RTSP/RTP streaming engine supports Unicast and Multicast and streams user configurable combinations of the channels over the GigE Ethernet to client systems for low latency viewing and analysis. KLV metadata capture is supported on the HD-SDI input. The metadata is extracted and embedded into the encoded stream for client processing and display.
The nanoHydra-HD1SD4 has an integrated power supply and can be driven from a regulated 9-20V DC input. The system is housed in a rugged, watertight, conduction cooled, IP67 rated enclosure with sealed MIL -D38999 connectors and is ready to be installed into mobile platforms and harsh environments.
