HDMI2COMP-IS-OEM

Click image to enlarge HDMI2COMP-IS-OEM
HDMI/DVI-to-PAL/NTSC/RS-170 intelligent scan converter

The HDMI2COMP-IS-OEM is an intelligent scan converter that accepts a HDMI/DVI input at up to 1080p30 and converts it to broadcast quality PAL/NTSC/RS-170 composite video.

The HDMI2COMP-IS-OEM features high speed digital signal capture, video scaling, frame rate conversion and timing generation. Processing and scaling is performed in the digital domain for maximum quality before the video data is sent to a video encoder for conversion to broadcast quality composite PAL/NTSC/RS-170. This provides seamless and automatic conversion of HDMI/DVI to PAL/NTSC/RS-170 composite video.

The HDMI2COMP-IS-OEM is designed to be integrated directly on to a host motherboard for a highly integrated OEM solution.

Add to Quote Datasheet
Standalone HDMI DVI PAL NTSC RS-170 scan converter video format converter

Highlights

  • Converts HDMI/DVI to PAL/NTSC/RS-170
  • Supports DVI input at up to 1080p30
  • Composite PAL, NTSC, or RS-170 output
  • Single +5V power supply
  • Intelligent module – no configuration required
  • Operating system neutral
  • Compact 70mm x 50mm form factor



Applications

  • Aerospace instrumentation
  • Instrument panel
  • Multi-function display (MFD)
  • Situational Awareness
  • Remote Video Surveillance
  • Naval/Marine instrumentation
  • Border Security
  • Traffic Monitoring and Control
  • Video Acquisition and Analytics

SDK's

The HDMI2COMP-IS-OEM is an intelligent device with its own on-board MPU and does not require a host CPU or any driver software.

Supported Platforms n/a
Digital Video Input

HDMI/DVI display resolutions of:

  • 1080p30
  • 1280×1024,
  • 1024×768
  • 800×600
Analog Video Output

Supported output standards:

  • CCIR601-NTSC
  • RS170
  • CCIR-PAL
  • PAL-B, PAL-D, PAL-G, PAL-H, PAL-I
  • Composite video output
  • 75ohm signal output
Miscellaneous

Intelligent module designed to be integrated

No CPU or driver required

Compact  70mm x 50mmnform factor

Single +5V supply

Low power operation: 5V @ <1A

Operating temp –40˚C to +85˚C

Documentation

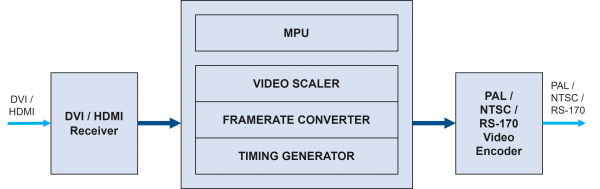

HDMI2COMP-IS-OEM Block Diagram

Order Enquiry for HDMI2COMP-IS-OEM

Product Codes
  • HDMI2PAL-IS-OEM-EXT - HDMI/DVI to PAL scan converter (-40˚C to +85˚C)
  • HDMI2NTSC-IS-OEM-EXT - HDMI/DVI to NTSC scan converter (-40˚C to +85˚C)
  • HDMI2RS170-IS-OEM-EXT - HDMI/DVI to RS170 scan converter (-40˚C to +85˚C)
